Home > Product > JC jaw crusher

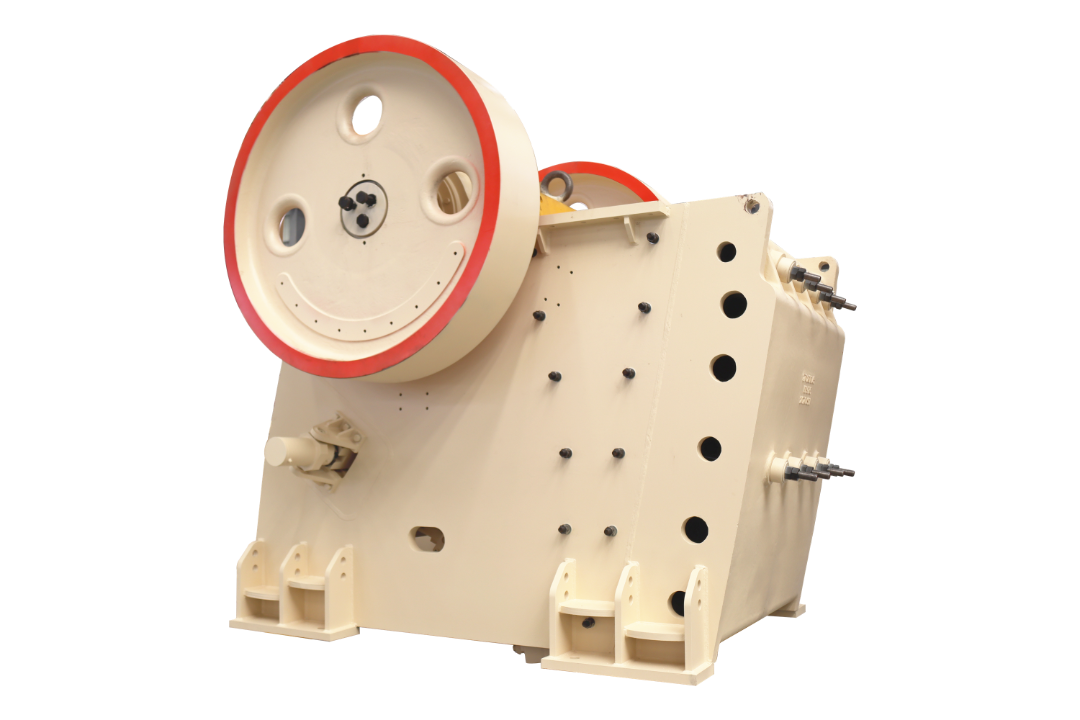

JC jaw crusher

JC jaw crusher is successfully developed by NMS through advanced technology. It is widely used in various hard and abrasive rock. It is possible foundation bolts are not required due to the good balance of the crusher.

The crusher can operate by rubber dampers and stoppers, to efficiently absorb crushing load, avoid the damage to the crusher foundation.

+86 791 83782922

Features

CSS (Wedge) adjustment system

Mechanical or hydraulic wedge CSS adjustment system is simpler and safer than the shim adjustment.

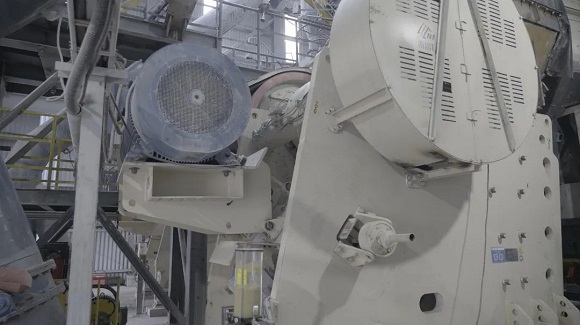

An integral motor base

An integral motor base is mounted on the crusher frame to extend V-belt life and save the mounting space, the foundation can be more simple, while the standard belt wheel and the flywheel cover can be used.

Reliable & durable heavy-duty pitman assemble

The pitman is made of high quality cast steel, driven by the heavy-duty cast iron belt wheel and flying wheel. The heavy duty forging eccentric flying wheel shaft and SKF or FAG bearing make the crusher extraordinarily reliable. The pitman is equipped with one interchangeable protection plate; efficiently protect the pitman from the shock of the feeding material.

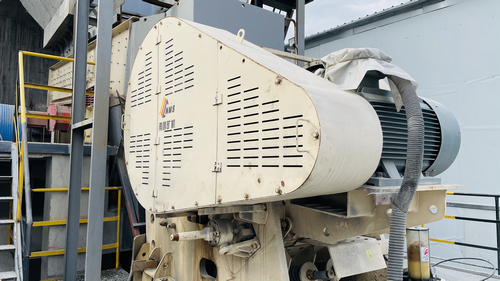

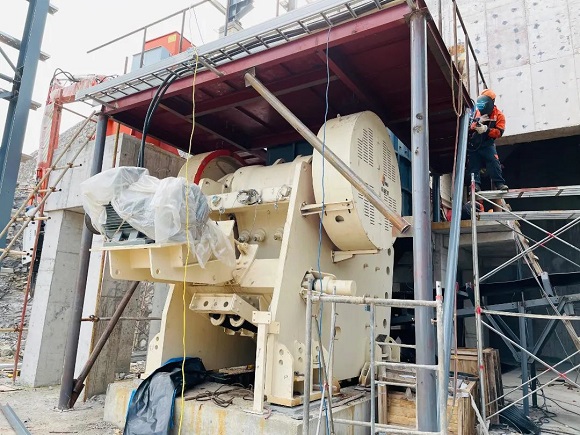

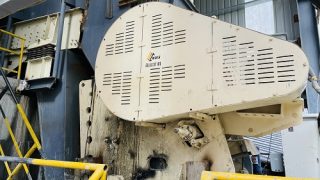

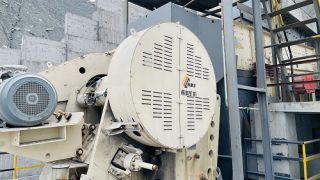

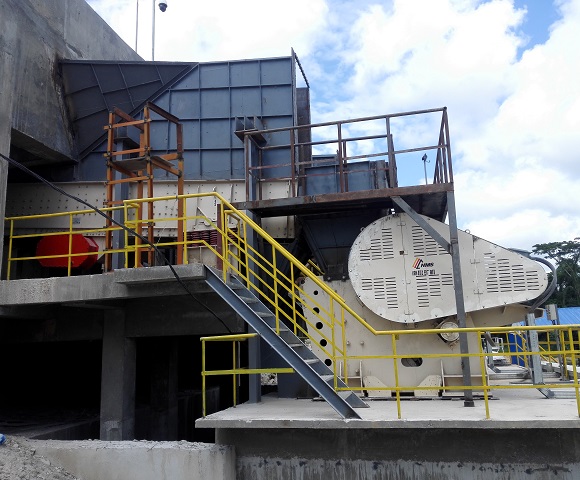

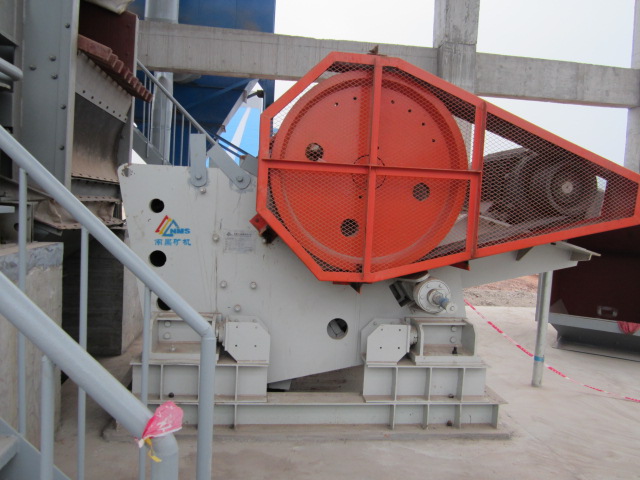

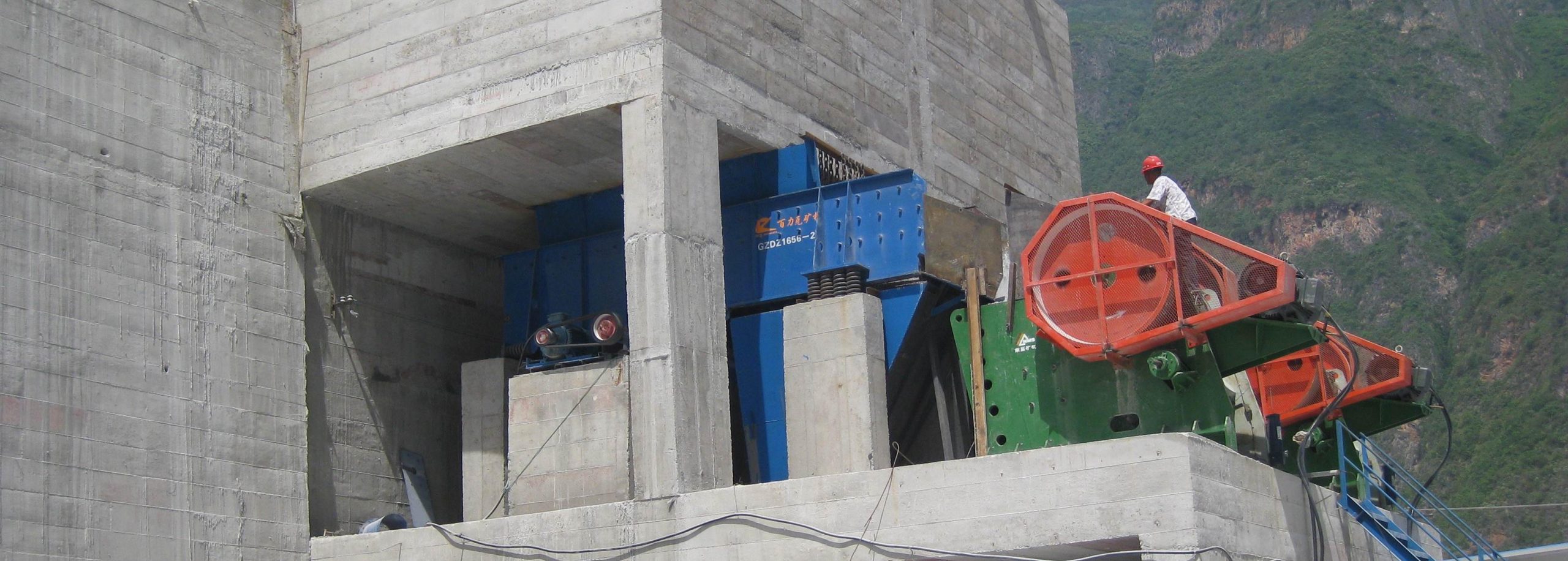

Product Application

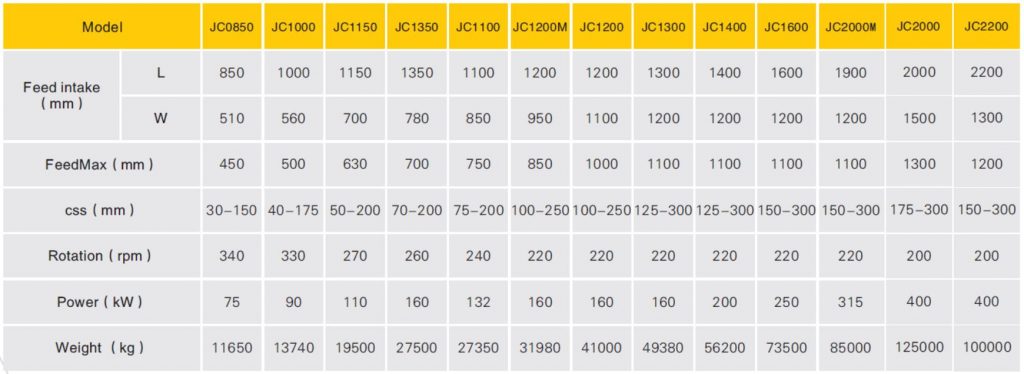

Technical Parameters
