Home > Product > VS impact crusher

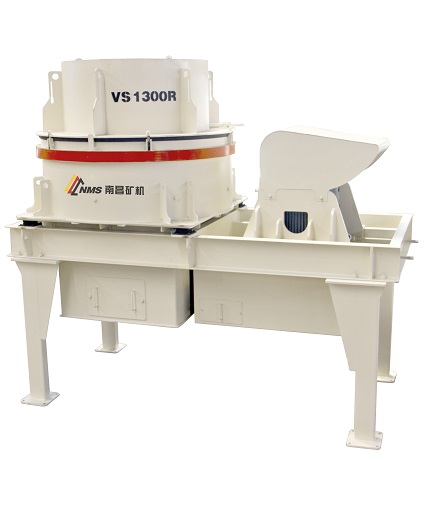

VS impact crusher

VS series crusher features in material overflow chamber, choke feeding, deep chamber,centering feeding multiple internal air flow cycling, heavy reliable bearing, oil lubrication, resulting in reliable operation, less maintenance, less operation cost.

VS series crusher is widely used for aggregate shaping and sand manufacturing. VS crusher is also the ideal replacement of traditional compressive crusher in metal mining for fines production, or it could be also used for pre-grinding in cement production, which can reduce the energy consumption. In addition, it can be used for glass crushing in recycling business.

+86 791 83782922

Features

Patented center feeding design

The size of feeding mouth is adjustable to keep choke feeding, so that there comes less air, less dust, and the material wont hit the rotor directly. The feeding always centers at the rotor center, to avoid abnormal vibration caused by uneven feeding, the crusher operates more smoothly. Reasonable overflow feeding can easily obtain the required end products, to increase the capacity.

Deep chamber triple channel rotor

Perfect balance, high throughput, less wearing, better versatility, easier replacement.

Oil lubrication system and start control

Full lubrication, mandatory heat release, filter, featuring protection of oil leakage, not enough oil and overheat, which links with the start control without daily maintenance. The machine is equipped with Germany soft starter, featuring as follows: monitoring TV, lubrication station, oil temperature live display, overheat protection and vibration protection.

Product Application

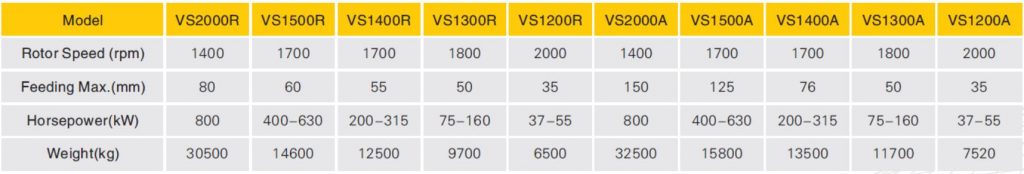

Technical Parameters
