Home > Project > Copper-Cobalt Project by China Nonferrous Metal Mining (Group) Co., Ltd. (CNMM), Democratic Republic of the Congo

Copper-Cobalt Project by China Nonferrous Metal Mining (Group) Co., Ltd. (CNMM), Democratic Republic of the Congo

2020.06.24

Project Name: 3# Copper-Cobalt Project by CNMM

Location: Democratic Republic of the Congo

Mine: copper-cobalt ore

Capacity: 200 tons/hour

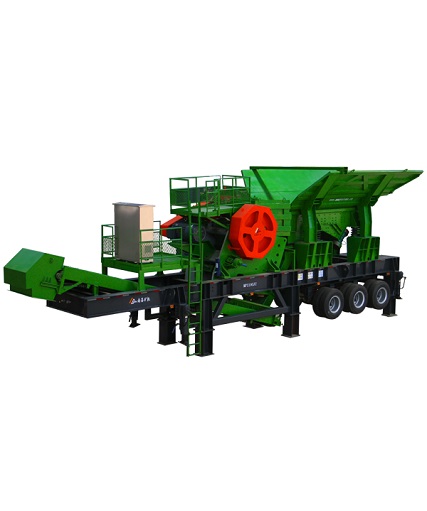

Main Equipment: MP1100JC portable jaw plants  (composed of jaw crusher JC1100, HPF1245 feeder and RSC1021 rotary belt conveyor)

Use of Finished Products: industrial metal consumables and lithium battery anode materials

Technological Process: The materials with larger lump size directly entered the 3# main line for crushing. The crushed lump ores were crushed by a ball mill below P65=200 mesh, and the materials less than 200 mesh were extracted after being classified by a hydrocyclone. 3# crushing line: jaw crushing (JC1100) + 1 ball milling +  extraction + electrolysis

Project Name: 4# Copper-Cobalt Project by CNMM

Location: Democratic Republic of the Congo

Mine: copper-cobalt ore

Capacity: 300 tons/hour

Main Equipment: modular feeding station MK1410SN and crushing station MK1150JC

Use of Finished Products: industrial metal consumables and lithium battery anode materials

Technological Process: The materials with larger lump size directly entered 4# main line for crushing. The crushed lump ores were crushed by a ball mill below P65=200 mesh, and the materials less than 200 mesh were extracted after being classified by a hydrocyclone. 4# crushing line: jaw crushing (JC1150) + 1 ball milling +  extraction + electrolysis

About the Project

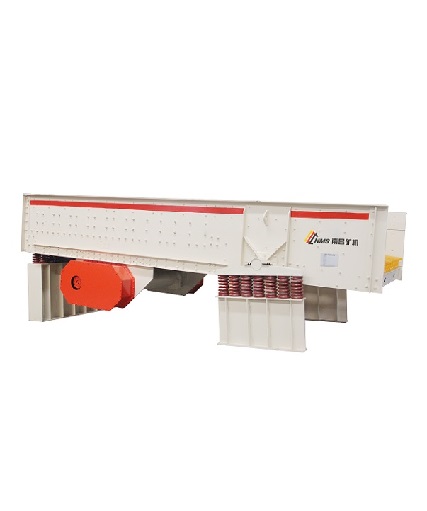

NMS supplied the project with jaw crusher JC1100, HPF1245 feeder, and RSC1021 rotary belt conveyor.

NMS  took the local climatic conditions and characteristics of ore structure  into full consideration, and provided the client with customized products and services. At the same time, our employees of the subsidiary in South Africa  were on standby to provide the client with parts supply and corresponding services to ensure the stable production capacity and the maximization of profit for the client.

Since the implementation of the project, its refined copper production capacity has increased from 32,000 tons/year to 40,000 tons/year, and the company’s annual profit has increased by 5%.
