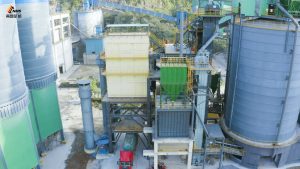

Sand-making Tower Project of Huaxin Cement (Chibi) Co., Ltd.

Project name: Sand-making Tower Project of Huaxin Cement (Chibi) Co., Ltd.

Location: Chibi City, Hubei

Type of ore: below 30mm, aggregates chips mixture

Equipment: MSP260 sand-making tower (1 set of VS1400A impact crusher, 2 sets of VSD1450 double chamber impact crushers, 3 sets of HFS1857 hydraulic high-frequency screens and 1 set of air-screening system)

Introduction

There are four models of NMS MSP sand-making tower for selection. The sand-making tower adopts single design, which integrates double chamber vertical shaft high-efficiency crusher, hydraulic high-frequency screen and integrated powder separator. It is composed of modules like sand-making, screening & powder-separating, dust removal, steel structure and intelligent control.

Sand-making:

double chamber & rotor for making sand, high sand-forming rate; crushing for sand-making and aggregates shaping are completed at one time; uniform finished products size, long rotor life.

Screening & powder-separating: integrated screening and air separation, large internal space, flying full, and high separation efficiency; gradation and fineness modulus and stone powder content can be flexibly adjusted by distributor and fine sand recycling; intelligent control for air volume and wind speed to ensure product quality.

Screening & powder-separating: integrated screening and air separation, large internal space, flying full, and high separation efficiency; gradation and fineness modulus and stone powder content can be flexibly adjusted by distributor and fine sand recycling; intelligent control for air volume and wind speed to ensure product quality.

Steel structure: modular design, high strength for bolt connection, fast installation on site; optimized layout and the reasonable space utilization; equipped with hoister, easy for maintenance.

Intelligent control: DCS control system to realize centralized control for all equipment; intelligent control for equipment and product quality; online real-time monitoring, with failure self-check and alarm function.

Design innovation:

Different from the common sand-making tower in the market at present, NMS MSP sand-making tower places the high-frequency screen above the crusher. The unique vibration design of high-frequency screen has little impact on installation components, which can reduce the amount of supporting steel structure of sand-making tower and the cost.

The screen frame does not vibrate and is easier to seal. The powder separator and the groove under the screen are designed as a whole. In a fully enclosed environment, the negative pressure air flow of dust collector can complete screening and powder separation at the same time, which is green and eco-friendly.

Operation process:

• The raw material is fed from material buffer chamber to NMS sand-making tower through the conveyor
• It’s lifted to the high-frequency screen by bucket elevator
• The oversize material goes into double chamber for crushing, and then transported to the bucket elevator by the belt conveyor for repeated crushing and screening
• The screened material can reach the standards of medium sand of Zone II, Type I after power separation, and it is transferred to finished product chamber by the conveyor

• The material is loaded to the vehicle by automatic loading system
