NMS 2MLS52120-F Banana Screen for Sticky & Moist Fines

In industries such as mining, metallurgy, building materials, and coal, screening sticky and moist fine materials has long been a persistent operational challenge. Blinding, low efficiency, high energy consumption, and short screen life—are these issues all too familiar?

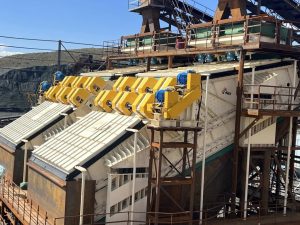

The new-generation NMS 2MLS52120-F Large Banana Screen is engineered to address these challenges. Built on the integrated concept of environmental performance, intelligence, and efficiency, it delivers a new solution for sticky and moist fine material screening.

Enhanced Performance, Superior Capability

With a screen length of 12 m and width of 5.2 m, the unit provides a total screening area of 62.4 m², delivering outstanding throughput capacity.
Vibration intensity reaches up to 30–50 G, with amplitudes up to 18 mm, enabling high-amplitude operation under demanding conditions.

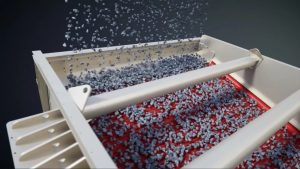

The elastic screen media undergoes micro-deformation during operation, effectively dispersing sticky materials, significantly reducing blinding, and improving screening efficiency.

Core Technology, Efficient Resonance

Based on the dual-mass resonance principle, compared with conventional screening equipment, it offers:

Lower energy consumption;

Extended service life;

Higher screening efficiency;

Simulation software is applied to model loaded operation conditions, enabling precise matching of optimal vibration parameters and systematic mitigation of operational risks.

Robust Design, Improved Durability

The heavy-duty, high-strength screen frame ensures stable operation and enhanced load-bearing capacity.

A large-area feed blind plate absorbs initial material impact, ensuring full utilization of the screening surface.

Crossbeams are coated with naturally bonded wear-resistant rubber, significantly extending service life.

Adjustable counterweight columns allow precise control of excitation force and amplitude.

Convenient Maintenance, Simplified Operation

The box-type exciter delivers strong excitation force and high-amplitude vibration, while allowing easy assembly and disassembly.

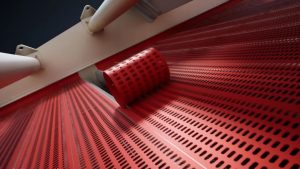

Clip-mounted MDI banana screen panels offer high elasticity, long service life, and quick replacement.

The thin oil lubrication system ensures reliable operation and minimizes downtime.

Green and Environmentally Friendly Upgrade

Under equivalent processing capacity, energy consumption is significantly lower than that of conventional screens, enabling genuinely green operation.

Composite springs with higher stiffness and improved resonance resistance reduce operating noise at the source.

The equipment can be equipped with a fully enclosed dust cover, effectively suppressing dust emissions and meeting environmental compliance requirements.

Screening sticky and moist fine materials is no longer a bottleneck. With its core strengths in environmental performance, intelligent design, and high efficiency, the NMS 2MLS52120-F Large Banana Screen delivers advanced technology and reliable quality to support stable and efficient production.
